HLQTV-Y4

HLQTV-Y4

HLQTV-Y4 is the Amlogic S905 quad core chip, which is 12 nm technology, supports 4K resolution, uses DDR4 operating memory, and is also paired with dual-band 5G WiFi, whether it is to play local video or online video, smooth and clear. It can be used with ATV system or Dnetsmart cloud system.

Video


Introduction

How it looks

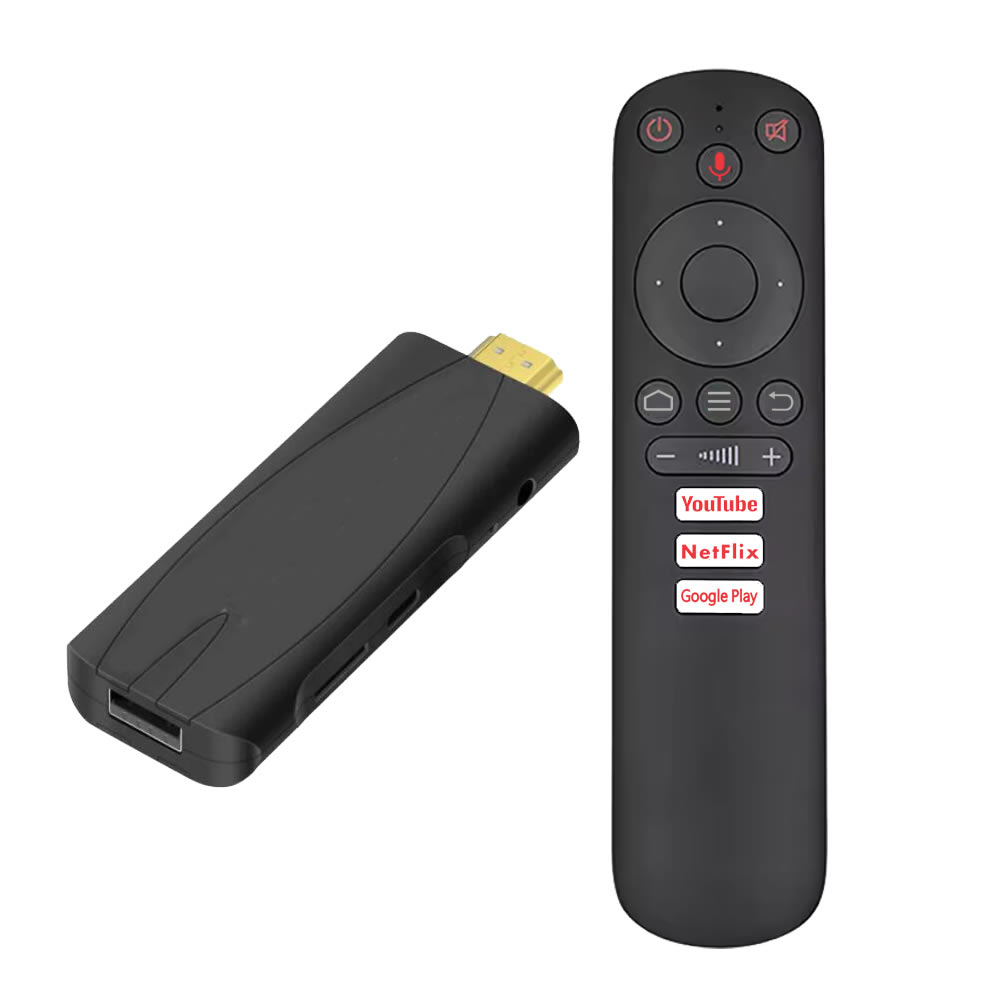

HLQTV-Y4 uses conventional black, adding rocket lines on both sides of the device, and the remote control uses black, white and red colors to make it more prominent and eye-catching.




What functions does it have?

HLQTV-Y4 connects to your TV, making your TV more intelligent, video decoding and playback support 4K 60fPS, you can install your favorite apps via USB flash drive or Google play store. The Bluetooth remote can control the box from any Angle, supports voice assistant function, and comes with shortcut keys such as Youtube/google play /netflix.

With the Dnetsmart cloud system, you can also update desktop information anytime and anywhere.

1 (2).png

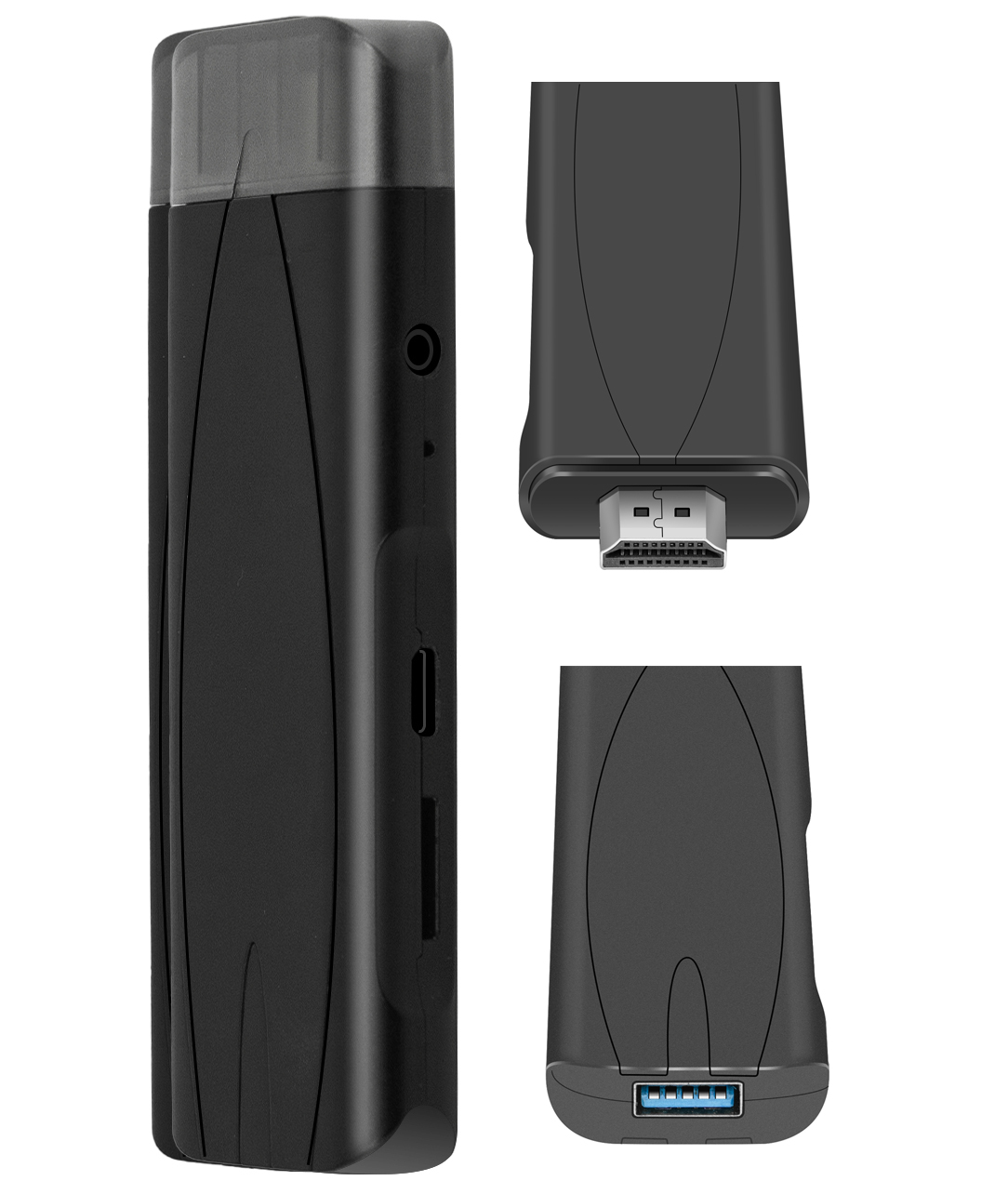

What interfaces does it support?

1 Micro USB   ,1 Type-A , USB3.0 TF card slot ,IR receiver port






What usage scenarios does it support?

HLQTV-Y4 has a powerful video decoding amplifier, as well as 4K output resolution, whether watching TV or playing games or meetings, can provide stable audio and video output.

1 (3).jpg


What is the customization support ?


1. Product packaging customization

2. Print the logo on the product shell

3. Software customization

4.Dnetsmart Cloud system customized startup animation and user interface (free)

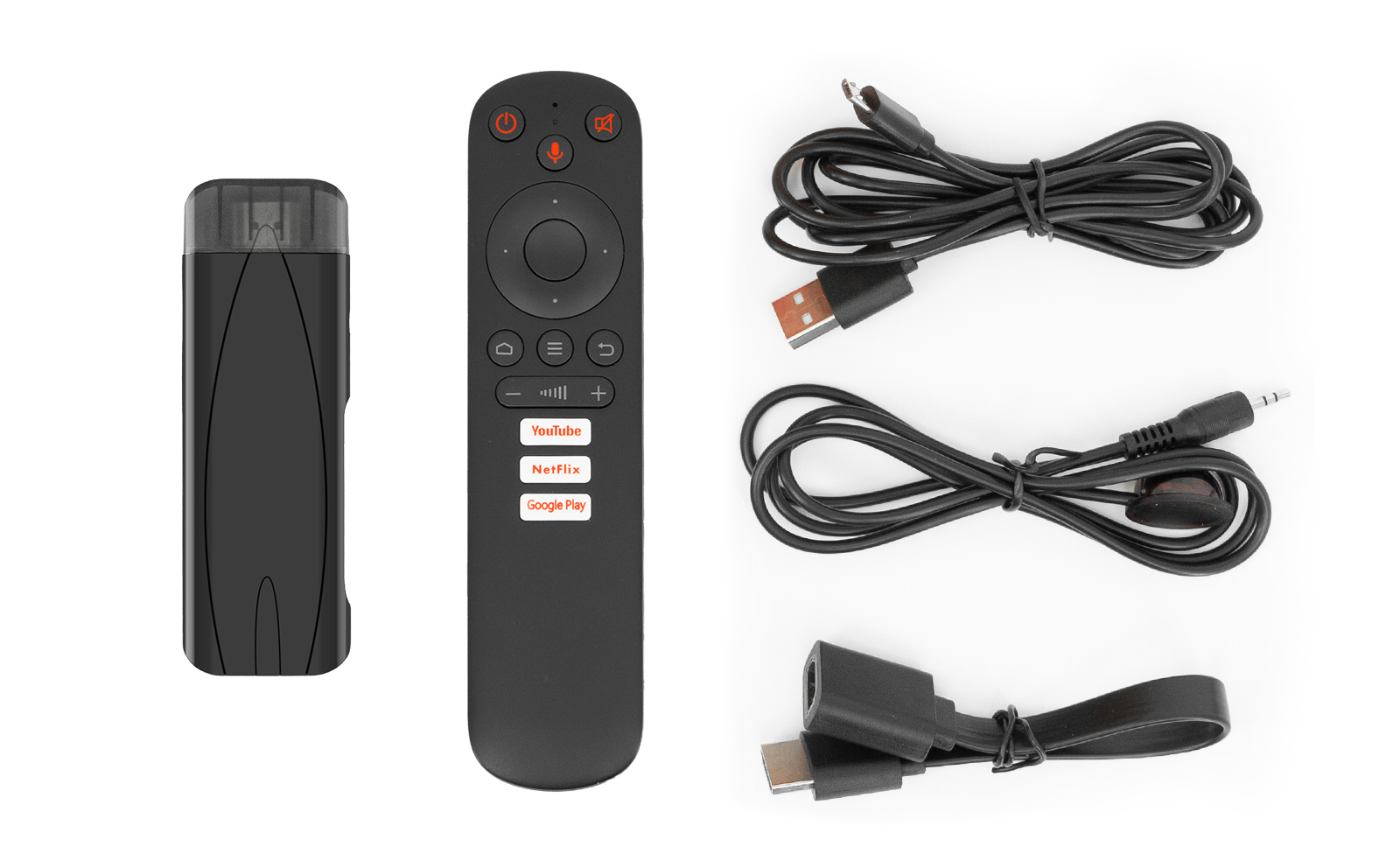

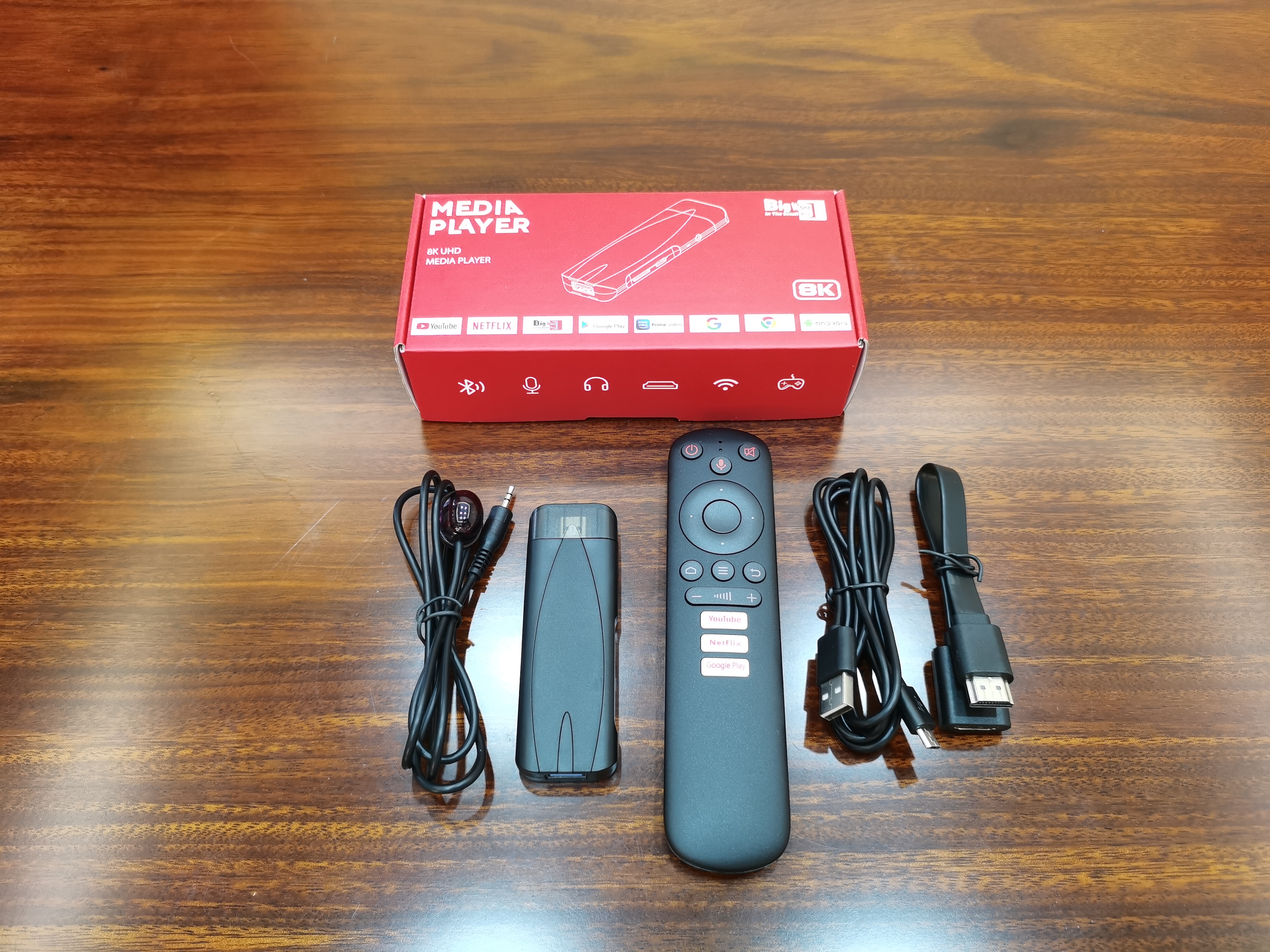

 Package Include:




Product specification

◆ChipsetAmlogic S905Y2/S905Y4 Quad Core, ARM® Cortex™-A35
◆GPUARM Mali-G31 MP2
◆OSAndroid  9.0 /13.0
◆RAMDDR4 2GB/4GB
◆ROM16GB/32GB
◆ BluetoothV5.0
◆ Wireless2.4G /5G dual-band Wifi 802.11 a/b/g/n/ac/ax
◆ USB 1 Micro USB   ,1 Type-A , USB3.0
◆ Card readerTF Card reader
◆ DisplayPortHDMI
◆ HDMIHDMI 2.0b for 4k@60Hz
◆Power Indicator (LED) Working:Blue Standby :Red
◆ Power SupplyDC 5V/2A
◆Operating temperature﹣10℃ to 45℃
◆ Support Decoder format4K,H.265,MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
◆Video Formats4K@60fps, H.265, AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV
◆ Support Music formatMP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV
◆ Support Photo formatJPEG/BMP/GIF/PNG/TIFF
◆ HDD file systemFAT16/FAT32/NTFS





Link : HLQ® ESU® MUZEE® YSE® StalkerPlayer® ISMARTX®
